10KW split-phase off-grid inverter

Name: 10KW split-phase off-grid inverter
Brand: RESUN ENERGY CO,.LTD
SKU: R-10KUS
Availability: InStock

Productdetails:

Plaats van herkomst:	China
Merknaam:	RESUN
Certificering:	FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE154
Modelnummer:	R-10KUS

Gedetailleerde informatie

Plaats van herkomst:

China

Merknaam:

RESUN

Certificering:

FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE154

Modelnummer:

R-10KUS

Model:

R-10KUS

Vermogen:

10 kW

Max Efficiency:

98%

Bedrijfstemperatuurbereik:

-25 ~ 60℃

Batterijcompatibiliteit:

Li-ion / door de gebruiker gedefinieerd

Nominale batterijspanning:

48V

Koelmethode:

Koeling van de ventilator

Ingangsspanningsbereik:

50/60 Hz

PV-INPUT gelijkstroomspanning, stroom:

120-500V, 4*14A

CommunicatieinterfaceInterface:

RS485, 4G (optioneel), Wi-Fi

Certificeringen:

FCC Deel 15 Klasse B; UL1741SA alle opties, UL1699B, CSA 22.2; IEEE1547

Garantie:

5 jaar

Markeren:

High Light

Markeren:

10KW split-phase inverter off-grid

split-phase hybrid inverter with warranty

off-grid inverter 10KW split-phase

Handelsinformatie

Min. bestelaantal:

1 stks

Prijs:

negotiable

Levertijd:

3-30 dagen

Betalingscondities:

T/T

Levering vermogen:

10000

Productbeschrijving

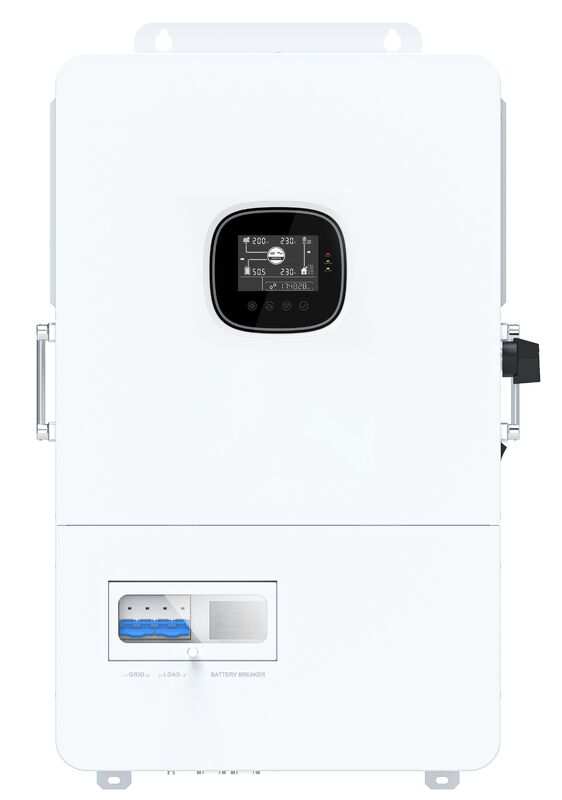

10KW Split-Phase Off-Grid Inverter

Looking for a reliable off-grid power solution for your home? The SPI-10K-UBP 10kw split-phase off-grid inverter is tailored to meet your household energy needs, turning solar power into stable, usable electricity with ease.

KEY STRENGTHS

Advanced MPPT technology with up to 99.9% efficiency
Up to 22A+22A PV input current
Comprehensive security from hardware to software
Exclusive Li-ion battery BMS dual activation
Time-slot function to save cost with peak-valley pricing
Support Li-ion battery BMS communication

Technical Specifications

Parameter	SPI-10K-UBP	Features
INVERTER OUTPUT
Rated Output Power	10000W
Max. Peak Power	20000VA
Rated Output Voltage	120/240 VAC (single-phase/split-phase)	✓
Load capacity of Motors	5HP
Rated AC Frequency	50/60Hz	✓
Waveform	Pure sine wave
Switch Time	10ms (typical)
Parallel Capacity	1~6 units
BATTERY
Battery Type	Lithium-ion battery/lead-acid battery/user-defined battery	✓
Rated Battery Voltage	48Vdc
Battery Voltage Range	40Vdc～60Vdc
Max. Grid/Generator Charging Current	120A	✓
Max. Hybrid Charging Current	200A	✓
PV INPUT
No. of MPPT Trackers	1+1
Max. PV Input Power	5500W+5500W
Max. PV Input Current	22A+22A
Max. Open Circuit Voltage	550Vdc/550Vdc
MPPT Voltage Range	125Vdc-425Vdc/125Vdc-425Vdc
GRID/GENERATOR INPUT
Input Voltage Range	90Vac-140Vac
Input Frequency Range	50/60Hz
Bypass Overload Current	63A
EFFICIENCY
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	92%
GENERAL
Dimensions	723448150 mm
Weight	28kg
Protection Degree	IP20, indoor only
Operating Temperature Range	-10～55℃, >45℃ derated
Noise	<60dB
Cooling Method	Intelligent fan
Warranty	18 Months
COMMUNICATION
Embedded Interfaces	RS485 / CAN / USB / Dry contact	✓
External Modules (Optional)	Wi-Fi / GPRS	✓
CERTIFICATION
Safety	IEC62109-1, IEC62109-2
EMC	EN61000-6-1, EN61000-63, and FCC 15 class B
