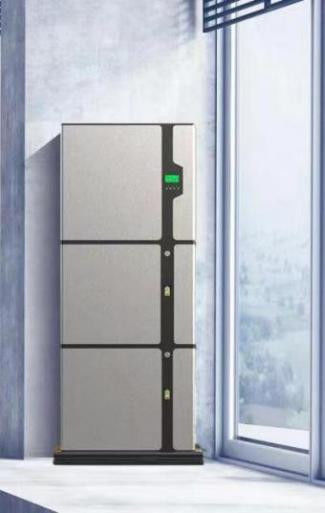

Home stacked inverter 5KW easy installation all-in-one machine
1. 5KW high-power stacked inverter all-in-one machine, easy to install, easily adaptable to household electricity needs, flexible expansion.
2. Modular stacking design, on-demand power combination, 5KW efficient inverter, easy installation, stable and uninterrupted power supply.
3. A household inverter all-in-one machine that can be quickly deployed without complex processes, with a powerful output of 5KW, making electricity consumption worry free and effortless.
FEATURES
• Strong charging and discharging current: 100A maximum charging and discharging current, fast charging and stable discharging, able to quickly respond to peak power consumption, whether it is starting high-power equipment or daily power supply, it can be efficiently adapted to improve power efficiency.
• Long life design: The design has a lifespan of over 6 years and a cycle life of over 3000 times under 80% DOD conditions. After long-term durability verification, it reduces frequent replacement costs and provides users with a durable and reliable energy storage solution.
• Wide protocol compatibility: Supports optional Modbus/RS485/CAN protocols, can be integrated with various devices and control systems, easily integrates into existing power management systems, achieves intelligent monitoring and collaboration, and improves system integration convenience.
Description
| Parameter |
Details |
| Model |
AL-5K-10KWh-D |
| Rated Capacity |
200Ah (10KWH) |
| Rated Voltage |
51.2V |
| Discharge Cut - off Voltage |
40V |
| Charge Limiting Voltage |
58.4V |
| Maximum Continuous Discharge Current |
100A |
| Maximum Charge Current |
100A |
| Weight |
About 180 kg |
| Inverter |
5KW |
| Dimensions (WDH) in millimeters |
610*200*1600 |
| Battery Type |
3.2V 200AH (16 S 1 P) |
| Design Life |
More than 6 years |
| Cycle Life |
Over 3000 cycles at 80% DOD |
| Protocol (Optional) |
Modbus/RS485/CAN |
| Operating Temperature |
Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C |
